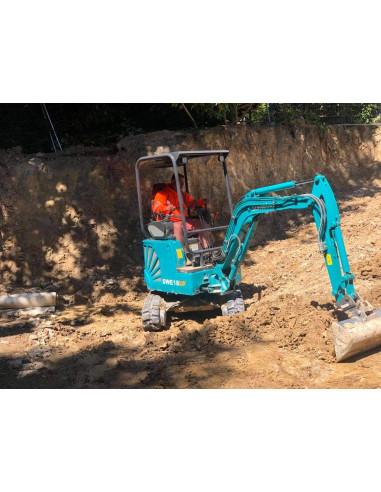

The Sunward SWE 18UF is a 4-pole canopy mini excavator built for small corners and tight working conditions. With the zero-tail chassis and the expandable undercarriage, you can get into the smallest spaces, allowing for precise movement, even when the space is restricted.
| Model |
Yanmar 3TNV80F-SSU |
| Emission rating |
EU Stage V |
| Displacement |
1.267 L |
| Rated power output |
13.4 kW |
| Type |
2 Variable Piston Pumps + 1 Gear Pump |
| Displacement |
50.6 L/min |
| Hydraulic pressure |
24.5 Mpa |
| Max. digging depth |
2 210 mm |
| Max. digging reach |
1 675 mm |
| Max. bucket digging force |
22,7 kN |
| Max. arm digging force |
11 kN |
| Operating weight |
1 880 kg |
| Standard bucket capacity |
0,04 m³ |
| Shipping length |
3 582 mm |
| Shipping width |
990 mm |
| Height over canopy |
2 555 mm |
