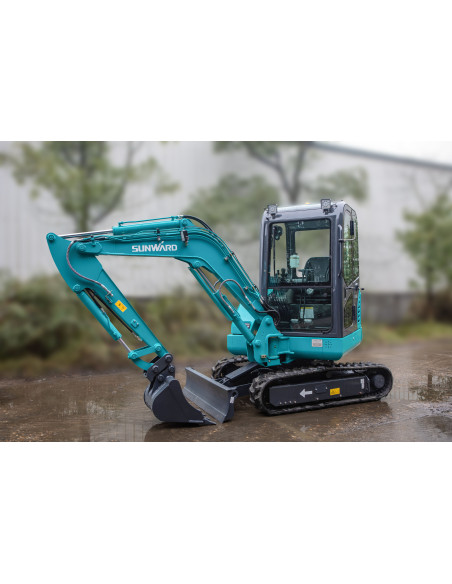

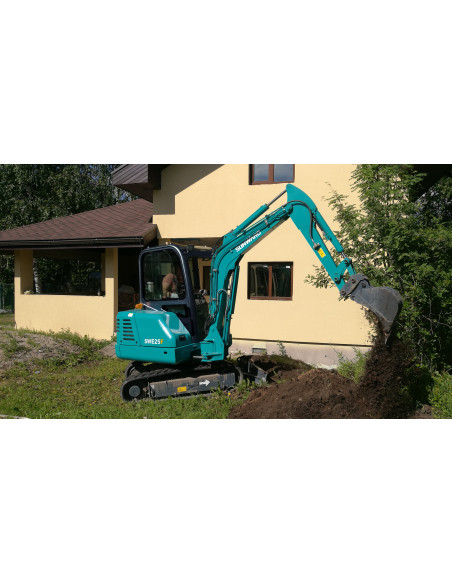

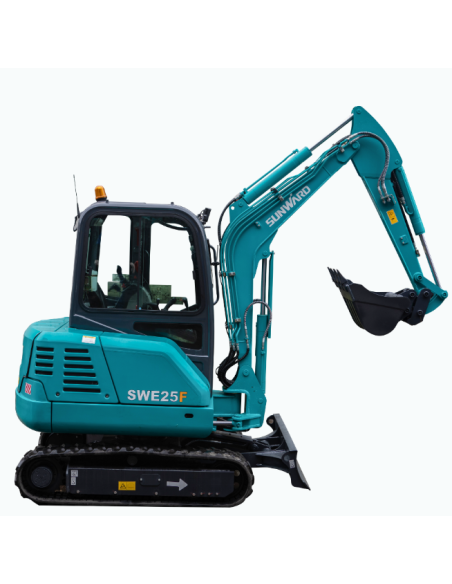

The Sunward SWE 25F mini excavator is designed for durability in all working conditions, even the hardest, with no compromise on comfort and safety. Its performance on the job is exceptionally good. Its weight category makes it very easy to transport.
| Model |
Yanmar 3TNV80F-SPSU |
| Emission rating |
EU Stage V |
| Displacement |
1.267 L |
| Rated power output |
14.6 kW |
| Type |
1 variable piston pump |
| Displacement |
77 L/min |
| Hydraulic pressure |
24.5 Mpa |
| Max. digging depth |
2 705 mm |
| Max. digging reach |
4 845 mm |
| Max. bucket digging force |
24 kN |
| Max. arm digging force |
14 kN |
| Operating weight |
2 640 kg |
| Standard bucket capacity |
0,08 m³ |
| Shipping length |
4 262 mm |
| Shipping width |
1 500 mm |
| Height over cabin |
2 400 mm |
