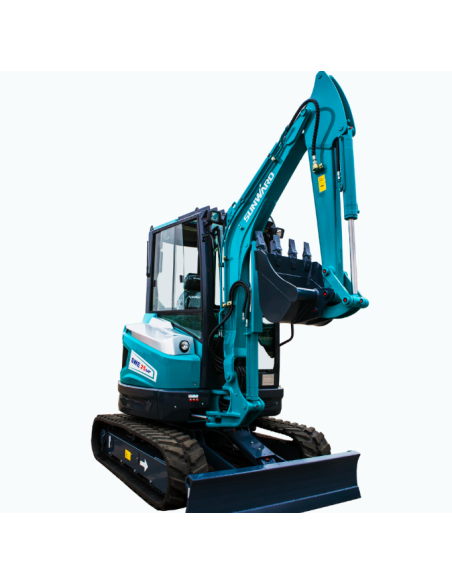

The Sunward SWE 25UF mini excavator is the zero-tail version of the SWE 25F mini excavators. As the SWE 25F, the SWE 25UF benefits from exceptionally good performance on the job. But its unique zero-tail compact design makes it the perfect option for tight jobsites where power is required. Its weight category makes it very easy to transport.
| Operating weight |
2 550 – 2 650 kg |
| Standard bucket capacity |
0,08 m³ |
| Shipping length |
4 262 mm |
| Shipping width |
1 500 mm |
| Height over cabin |
2 455 mm |
| Model |
Yanmar 3TNV80F-SPSU |
| Emission rating |
EU Stage V |
| Displacement |
1.267 L |
| Rated power output |
14.6 kW |
| Type |
1 variable piston pump |
| Displacement |
77 L/min |
| Hydraulic pressure |
24.5 Mpa |
| Max. digging depth |
2 840 mm |
| Max. digging reach |
4 775 mm |
| Max. bucket digging force |
24 kN |
| Max. arm digging force |
14 kN |
| Type of cab |
Cab or Canopy |
