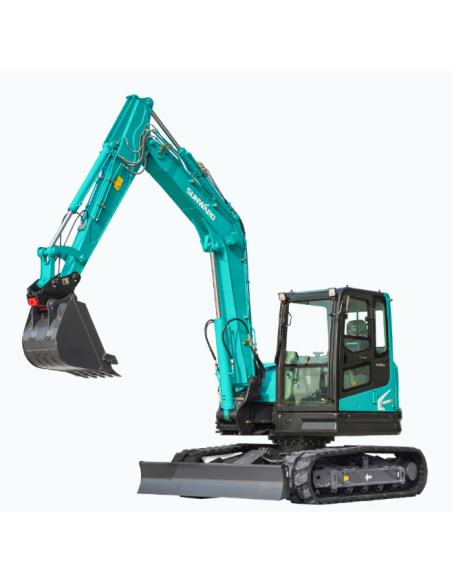

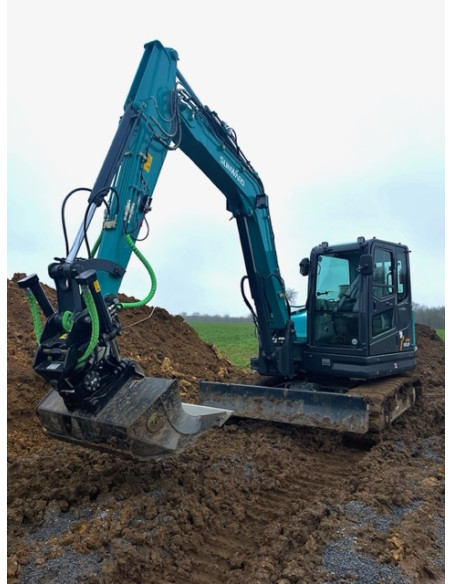

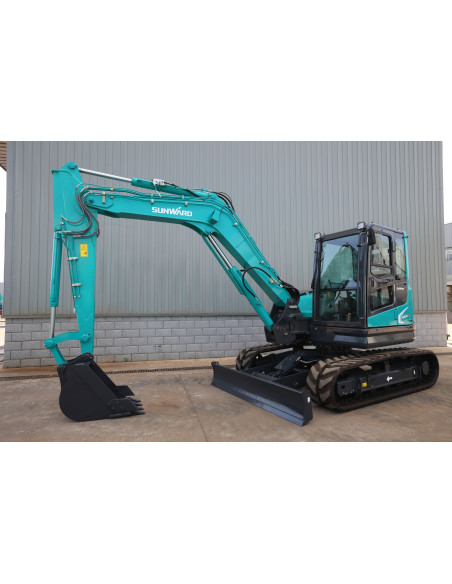

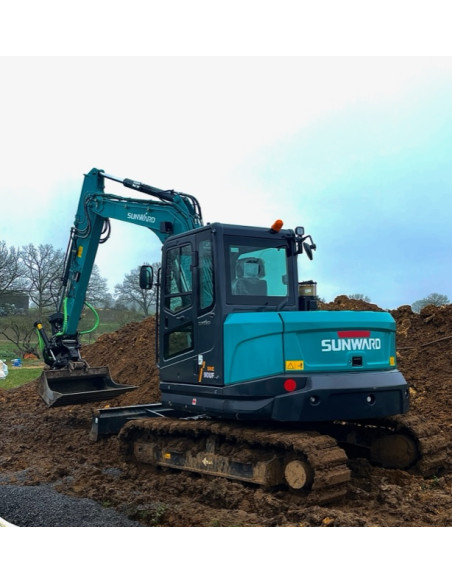

It is the shortest 9-ton short-tail excavator (by almost 20 cm) available in the market. It combines the power of the Yanmar 4TNV98C engine, delivering 46.2 kW, with incredible precision thanks to the dual proportional joysticks, the perfectly fitted hydraulic flow coupled with the LUDFF system (Load Independent Flow Control). To balance between fuel consumption and the desired productivity, the SWE 90UF offers 3 working modes.
| Model |
Yanmar 4TNV98C |
| Emission rating |
EU Stage V |
| Displacement |
3.319 L |
| Rated power output |
46.2 kW |
| Type |
1 variable piston pump |
| Displacement |
160 L/min |
| Hydraulic pressure |
28 Mpa |
| Operating weight |
8 750– 8 900 kg |
| Standard bucket capacity |
0,26 m³ |
| Shipping length |
6 494 mm |
| Shipping width |
2 250 mm |
| Height over cabin |
2 735 mm |
