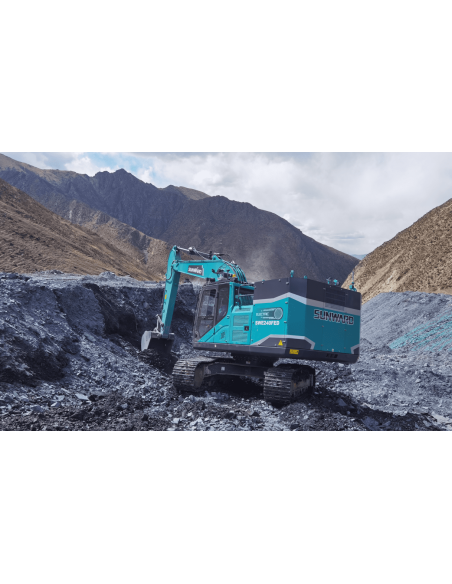

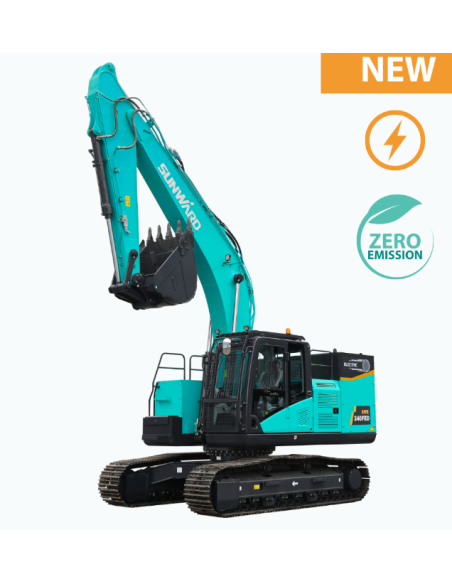

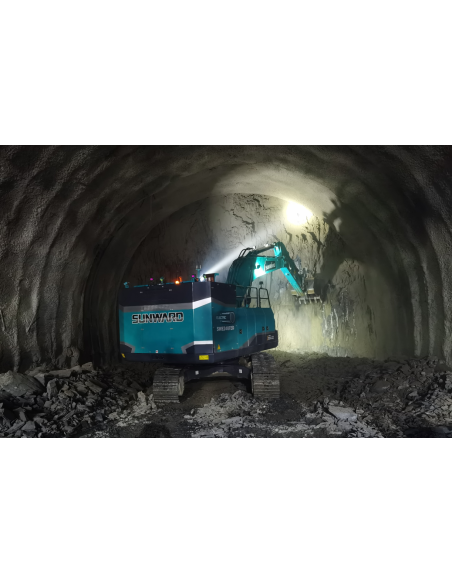

The Sunward SWE 240FED electric medium excavator is the perfect fit for areas with high requirements in terms of exhaust gas emissions and noise, but also high and cold plateaus, with large temperature differences and insufficient oxygen supply, and finally construction sites in relatively confined spaces underground and tunnels. It is designed to be versatile and durable, with a long lifetime. The SWE 240FED’s masterful design, 3-Phase asynchronous motor, and enhanced hydraulics system deliver power, smooth operation, and high productivity with respect for environment.
| Motor type |
3-Phase asynchronous |
| Emission rating |
Zero emission |
| Rated power output |
120 kW |
|
|
| Max. digging depth |
4 850 mm |
| Max. digging reach |
9 710 mm |
| Max. bucket digging force |
155 kN |
| Max. arm digging force |
110 kN |
| Operating weight |
23 180 kg |
| Standard bucket capacity |
1.0 m³ |
| Shipping length |
9 650 mm |
| Shipping width |
2 710 mm |
| Height over cabin |
3 318 mm |
