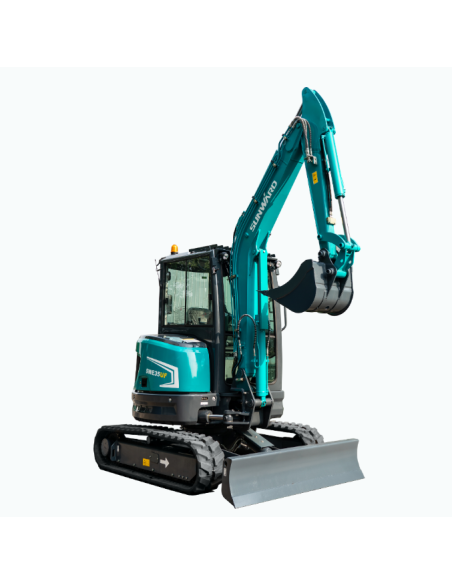

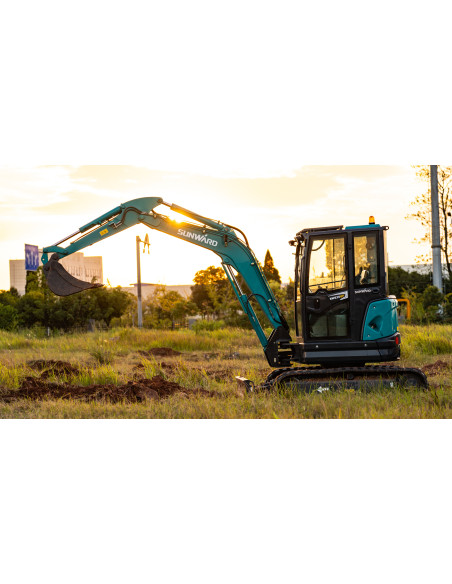

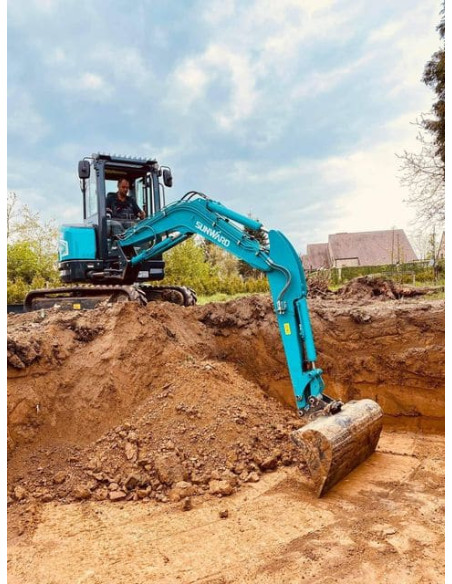

The Sunward SWE 35UF mini excavator is the largest mini excavator in the Sunward range. The zero-tail SWE35UF can handle bigger projects than its smaller companions, while also maintaining good performance, maneuverability, and speed on the job.
| Model |
Kubota D1703-E4B-SWD-1 |
| Emission rating |
EU Stage V |
| Displacement |
1.647 L |
| Rated power output |
18.2 kW |
| Type |
1 variable piston pump |
| Displacement |
88 L/min |
| Hydraulic pressure |
24.5 Mpa |
| Max. digging depth |
3 120 mm |
| Max. digging reach |
5 390 mm |
| Max. bucket digging force |
31.8 kN |
| Max. arm digging force |
22.53 kN |
| Operating weight |
3 850 ‒ 3 750 kg |
| Standard bucket capacity |
0,11 m³ |
| Shipping length |
4 890 mm |
| Shipping width |
1 700 mm |
| Height over cabin |
2 555 mm |
